Using 3D Programs to Design Boats: A Beginner's Journey with Fusion 360

11 months ago

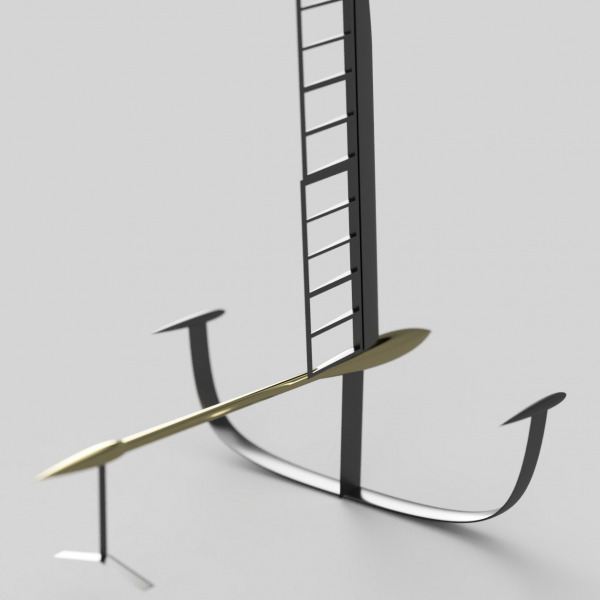

In the realm of digital design, the boundary between what’s possible and what’s dreamt has thinned dramatically. This is nowhere more evident than in the realm of boat design. Don’t believe me? Just glance at the image of the futuristic foiling yacht – its shiny black silhouette, a fixed wing sail reminiscent of sci-fi fantasies, and a shiny gold hull shaped more like an arrow than a conventional boat. Welcome to the wonders of 3D design using Fusion 360. Get Fusion360 for Personal Use.

concept this boat

Why Use 3D Programs?

With the evolution of 3D design software, gone are the days when boat ideas were just inked dreams on paper.

  1. Precision & Accuracy: The sharp contours and elegant aerodynamics of our showcased yacht couldn't be captured in a mere 2D sketch. It required the accuracy and precision of 3D design tools.
  2. Visualization: You can see its design perfection from every angle, demonstrating the power of 3D visualization.
  3. Testing: Wondering how that arrow-like hull will fare in water? Modern software allows for immersive simulations.

Why Fusion 360?

When it comes to sculpting such ambitious designs, Fusion 360 is a gem:

  1. User-friendly Interface: As you view the image of the yacht, remember that behind its gleaming exterior lies a user-friendly interface that made its design possible.
  2. Comprehensive Tutorials: If you’re wondering how to create a design as intricate as our shiny black yacht, there are countless tutorials to guide your way.
  3. Community Support: The Fusion 360 community is as dynamic as the gold and black contrasts of our showcased design. There’s always someone ready to help.

Designing with Fusion 360

1. Start with Basics: Before you sculpt your own masterpiece, get acquainted with the software's tools and navigation.

2. Sketching: Begin with a basic 2D sketch. The arrow-like hull of our yacht? It began as a mere line on a digital canvas.

3. Extruding: From the 2D design emerges a 3D spectacle. Just like our yacht started to take its unique shape.

4. Refinement: Here, you infuse life into your design. Think of the yacht’s fixed wing sail – a product of multiple refinement cycles.

5. Testing: Simulate real-world conditions. Perhaps you want to see how that gold hull cuts through waves?

6. Rendering: The glistening shine of the yacht's body, the way it captures light – that’s the magic of rendering.


Embracing the Future with STL 3D Modelling

Our yacht, with its futuristic appeal, doesn't just have to be a digital entity. Using STL (Stereolithography), it's possible to bring this design to tangible life via 3D printing. Imagine holding a miniature version of this shiny black and gold marvel!

In essence, Fusion 360, complemented by 3D printing through STL models, is ushering in a new age of boat design. All it takes is passion, persistence, and imagination – and soon, you might be crafting your very own futuristic masterpiece. Here is an article of a 3d Printed Racing Sparrow.
